OTL 1500V Universal Connectors

For 6 - 300mm2 Conductors

General: The OTL universal connectors offer the highest quaility product with versatile features for many industries. The connectors can be used for both copper and aluminium cable offering a wider cable selection than other universal connectors on the market. The connectors are supplied with pre-greased contact spaces, whilst the connections are made with hex screws guarantee easy, secure and quick installation.

The compact size and DIN rail or screw mounting of the connectors ensures efficient use of the space in tighter installation spaces.

Use: OTL universal connectors are used for the branching and connecting aluminium and copper cables. These small modules offer high power connections for the EV charging, Solar and Windfarm applications as well as many other uses.

Materials: The body of the OTL connectors is tin plated aluminium whilst the insulating cover is made of UL 94 V-0 polyamide.

Standards: EN 60947-1-1:2009; EN 61238-1:2003; UL1059 and CSA 222.2 No 158-10





1 Pole OTL Universal Connector

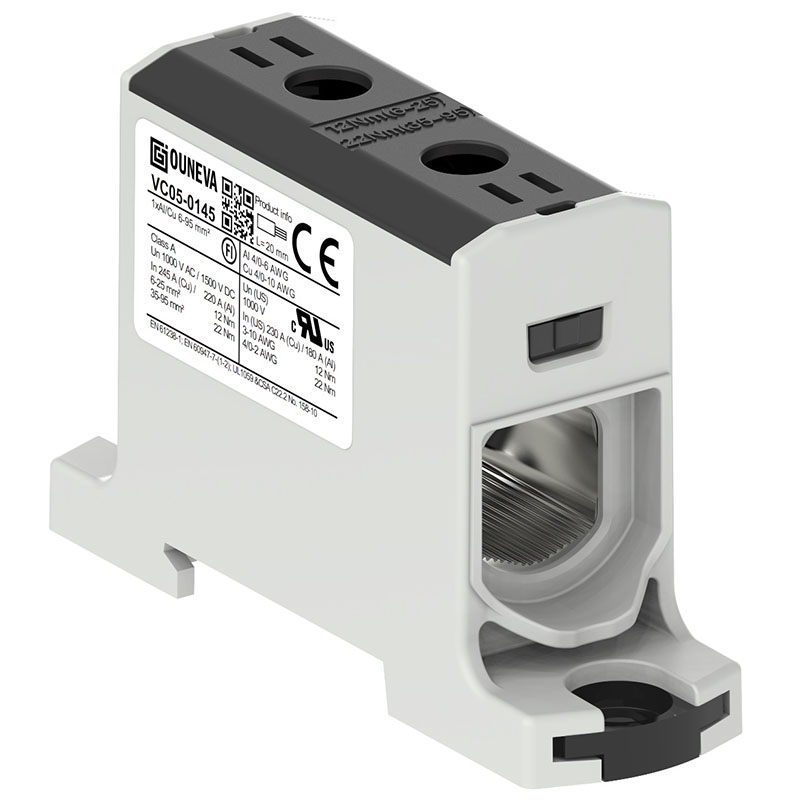

OTL Universal Connectors 1 pole for Al/Cu cables with dimensions 6-95mm²
VC05-0019 VC05-0050 VC05-0051 VC05-0144 VC05-0145
C-VC05-0019 C-VC05-0050 C-VC05-0051 C-VC05-0144 C-VC05-0145

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:




Conductor Size (mm²) Voltage Rating (V) Current Rating (A) Tightening Torque (Nm)

Please provide the following details to receive your installation instruction link



First Name:

Surname:

Company Name:

Email:
1 x Al/Cu 6-95 1000 (AC) / 1500 V (DC) 245 (Cu) / 220 (Al) 12 Nm (6-25 mm²), 22 Nm (35-95mm²)








OTL Universal Connectors 1 pole for Al/Cu cables with dimensions 25-150mm²
VC05-0028 VC05-0029 VC05-0030 VC05-0475 VC05-0476
C-VC05-0028 C-VC05-0029 C-VC05-0030 C-VC05-0475 C-VC05-0476

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:




Conductor Size (mm²) Voltage Rating (V) Current Rating (A) Tightening Torque (Nm)

Please provide the following details to receive your installation instruction link



First Name:

Surname:

Company Name:

Email:
1 x Al/Cu 25-150 1000 (AC) / 1500 V (DC) 320 (Cu) / 290 (Al) 14 Nm (25-50 mm²), 35 Nm (70–150 mm²)







OTL Universal Connectors 1 pole for Al/Cu cables with dimensions 35-240mm²
VC05-0034 VC05-0035 VC05-0036 VC05-0477 VC05-0478
C-VC05-0034 C-VC05-0035 C-VC05-0036 C-VC05-0477 C-VC05-0478

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:




Conductor Size (mm²) Voltage Rating (V) Current Rating (A) Tightening Torque (Nm)

Please provide the following details to receive your installation instruction link



First Name:

Surname:

Company Name:

Email:
1 x Al/Cu 35-240 1000 (AC) / 1500 V (DC) 425 (Cu) / 380 (Al) 26 Nm (35–120 mm²), 46 Nm (150–240 mm²)







OTL Universal Connectors 1 pole for Al/Cu cables with dimensions 95-300mm²
VC05-0213 VC05-0214 VC05-0215 VC05-0493 VC05-0494
C-VC05-0213 C-VC05-0214 C-VC05-0215 C-VC05-0493 C-VC05-0494

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:

Please provide the following details to receive your datasheet link



First Name:

Surname:

Company Name:

Email:




Conductor Size (mm²) Voltage Rating (V) Current Rating (A) Tightening Torque (Nm)

Please provide the following details to receive your installation instruction link



First Name:

Surname:

Company Name:

Email:
1 x Al/Cu 95-300 1000 (AC) / 1500 V (DC) 490 (Cu) / 440 (Al) 30 Nm (95–150 mm²), 60 Nm (185–300 mm²)
