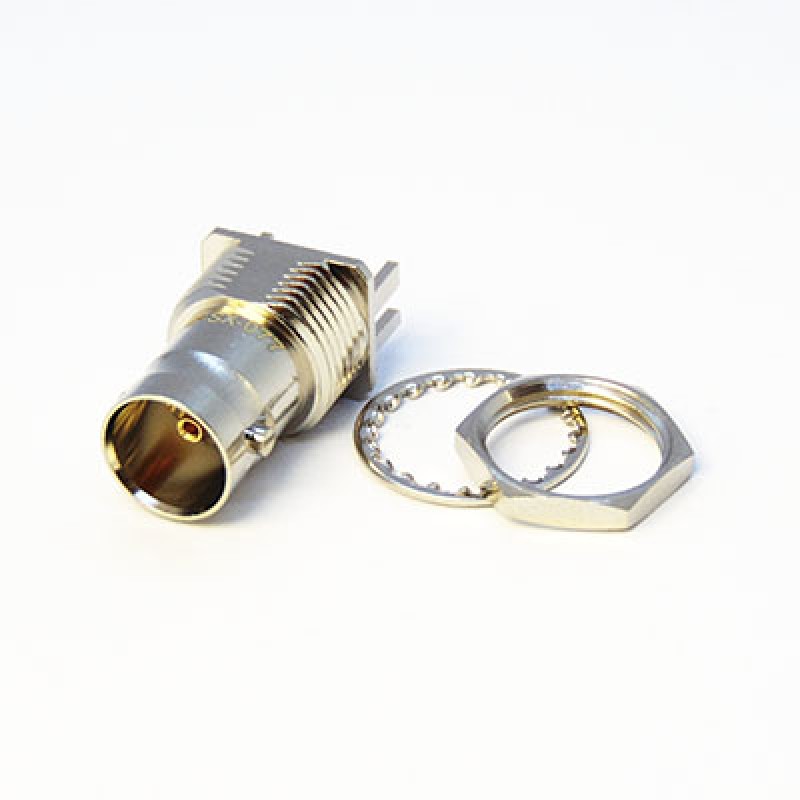

C-SX-077 - PCB Edge Mounting BNC Connector
C-SX-077 - PCB Edge Mounting BNC Connector  C-SX-077 - PCB Edge Mounting BNC Connector

Electrical
Impedance 75Ω
Frequency Range 0 - 3GHz
Working Voltage 500Vrms
Dielectric Withstanding Voltage 1500Vrms
Reflection Factor (VSWR) 1.08 (max) DC - 1.5GHz 1.16 (max) 1.5 - 3GHz
Contact Resistance Centre contact 1.5mΩ Outer contact 1.0mΩ
Insulation Resistance >5000M Ω
Connector Type Female
Material
Metal Parts Brass / Ni
Centre Pin Phosphor Bronze / 10µ"Au
Insulators PTFE
Environmental
Temperature Range -65 to +85°C
Processing
Processing Maximum hand soldering temperature 265°C
General Information
Mounting Type Edge Mounted
Board Thickness 1.6mm
Hardware Supplied with hex nut and washer

C-SX-077 - PCB Edge Mounting BNC Connector

  • Product Code: C-SX-077


This Precision 75Ω BNC Bulkhead is an edge mounting connector, meeting existing industry standard footprints and comes in the following size formats:

C-SX-077 for 1.6mm PCB thickness with dimension  A of 1.7mm

All sizes are supplied with standard nut and washer. Other materials such as Gold Plating are available to customer requirements.
