C-SX-144HTR2 - Flow Right Angle Mounting BNC Bulkhead Socket
C-SX-144HTR2 - Flow Right Angle Mounting BNC Bulkhead Socket

Electrical
Impedance 75Ω
Frequency Range 0 - 12.0 GHz
Working Voltage 500Vrms
Dielectric Withstanding Voltage 1500Vrms
Reflection Factor (VSWR) 1.09(max) DC - 6GHz 1.13 (max) 6.0 - 12.0Ghz
Contact Resistance Centre Contact 1.5 m Ω Outer contact 1.0 m Ω
Insulation Resistance >5000 M Ω
Material
Metal Parts Die Cast Zinc / Ni
Centre Pin Phosphor Bronze / 10µ "Au
Insulators PTFE
Environmental
Temperature Range -65 to +85°C
Mechanical
Mating Cycles 250
Processing
Processing Please see datasheet for full details
General Information
Mounting Type Right Angled
Leg Length 3.5mm
Hardware Supplied with hex nut and shakeproof washer

C-SX-144HTR2 - Flow Right Angle Mounting BNC Bulkhead Socket

  • Product Code: C-SX-144HTR2


Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high-performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Connectors 12GHz CoaxVisionTM BNC Connectors in both halves.

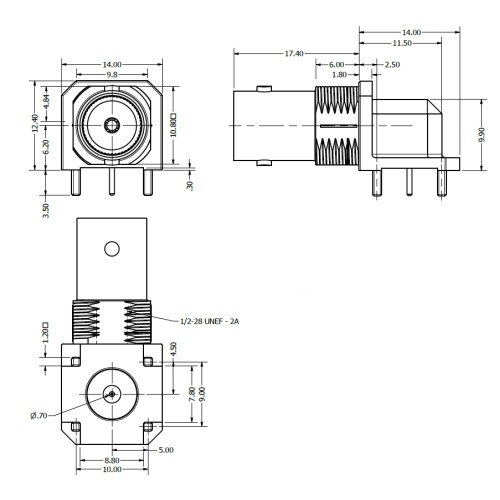

The C-SX-144HTR2 connector is a PCB right Angled BNC socket which has been specially designed for reflow and wave soldering and is supplied with nut and washer.
