Electrical
Impedance	75Ω
Frequency Range	0 - 12GHz
Working Voltage	170Vrms
Dielectric Withstanding Voltage	500Vrms
Reflection Factor (VSWR)	1.10(max) DC - 6GHz 1.13 (max) 6 - 12GHz
Contact Resistance	Centre contact 5.0mΩ Outer contact 2.5mΩ
Insulation Resistance	>1000M Ω
Connector Type	Female
Material
Metal Parts	Brass / Au
Centre Pin	BeCu / 10µ"Au
Insulators	PTFE
Environmental
Temperature Range	-65 to +85°C
Mechanical
Mating Cycles	500
Processing
Processing	Please see datasheet for full details
General Information
Mounting Type	Right Angled
Leg Length	2.6mm
Hardware	Supplied with 2 slot circular nut

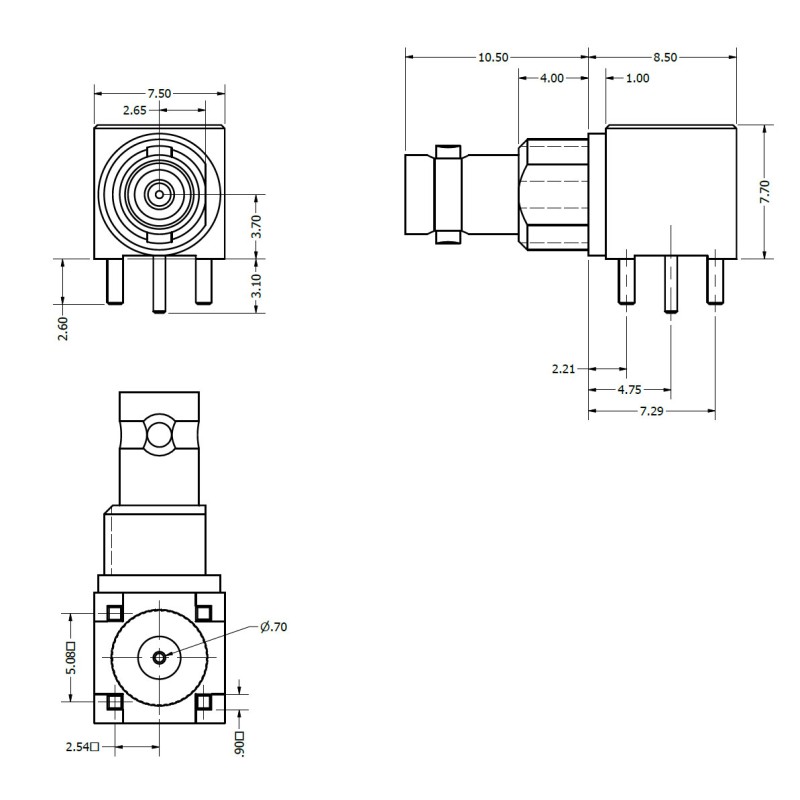

C-SX-199NGRZR2 - Right Angle PCB Bulkhead Micro BNC Connector

Product Code: C-SX-199NGRZR2

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector, but to achieve optimum performance we recommend using Cambridge Connectors 12GHz CoaxVisionTM Micro BNC Connectors in both halves.

The C-SX-199NGRZR2 is a Right Angle PCB Bulkhead Micro BNC socket which has been specifically designed for reflow solder processing and is supplied with a 2 slot circular nut.
